Download Universal Air Grate PDF Cut Sheet Raised Access Floor Universal 55% and 66% Air Grate Details

TOP

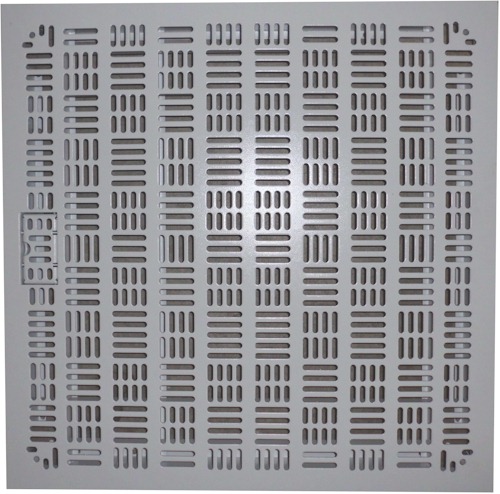

Universal High Output Airgrate Panel Views - Top

BOTTOM

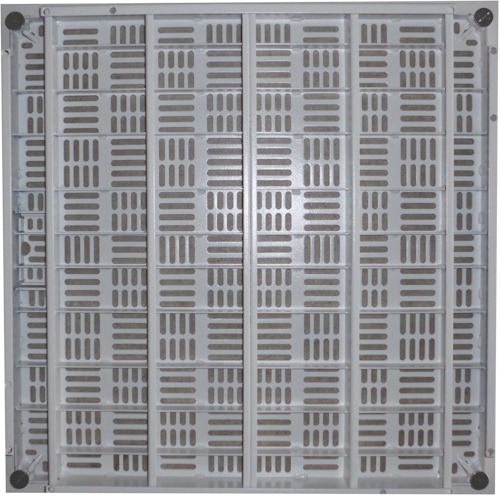

Universal High Output Airgrate Panel Views - Bottom

BOTTOM SIDE

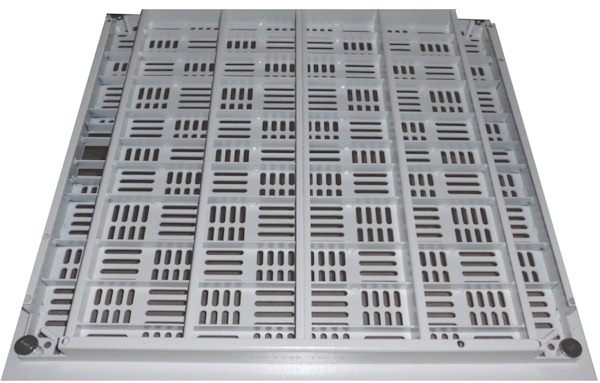

Universal High Output Airgrate Panel Views - Side

Universal High Output 55% and 66% Airgrate Details

High Output Air Grate Load Rating Table

Concentrated Load
Ultimate 0.100" 0.080" Impact Rolling Load
Panel Load
(lbs)		 Deflection
(lbs)		 Deflection
(lbs)		 Load
(lbs)		 10 Pass
(lbs)		 10k Pass
(lbs)
55% and 66% High Output Air Grate 4000 1500 1500 150 - 1000
