Air-Guard Grommets

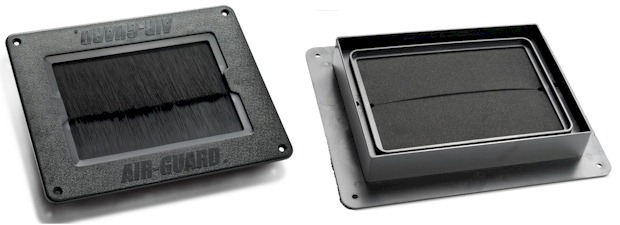

Air-Guard Extreme
Air-Guard Extreme
Dimensions
Cutout - 9.0"x 6.5"
Usable Area - 7.25"x 4.75"
Overall - 11.0"x 8.25"
Dimensions
Cutout - 9.0"x 6.5"
Usable Area - 7.25"x 4.75"
Overall - 11.0"x 8.25"

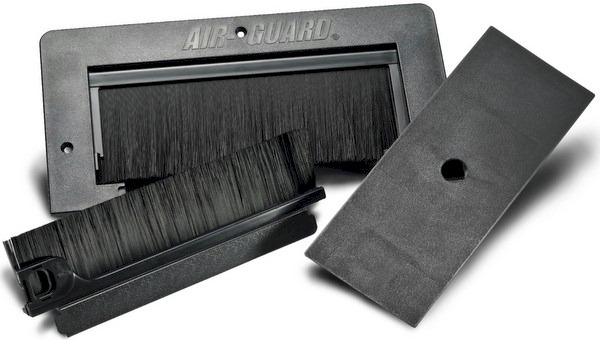

Air-Guard Flush Mount
Air-Guard Flush Mount (with safety cover and removable brush)
Dimensions
Cutout - 10.25"x 4.5"
Usable Area - 9.0"x 3.0"
Overall - 13.0"x 6.25"
Dimensions
Cutout - 10.25"x 4.5"
Usable Area - 9.0"x 3.0"
Overall - 13.0"x 6.25"

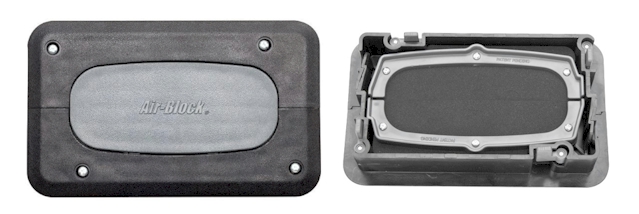

Air-Block 4"x8" Rectangular
Air-Block 4" x 8" Rectangular
Dimensions
External-8.875"x 5.375"
Cutout-7.875"x 4.375"
Knock-Outs-(5) 0.5" (expandable to 0.75")
Dimensions
External-8.875"x 5.375"
Cutout-7.875"x 4.375"
Knock-Outs-(5) 0.5" (expandable to 0.75")

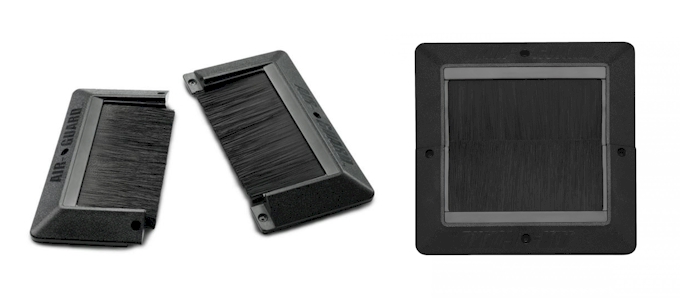

Air-Guard Surface Mount
Air-Guard Surface Mount
Dimensions
Cutout - 8.0"x 8.0"
Usable Area - 6.5"x 6.5"
Overall - 10.0"x 10.0"
Dimensions
Cutout - 8.0"x 8.0"
Usable Area - 6.5"x 6.5"
Overall - 10.0"x 10.0"
Air-Guard Brat
Air-Guard Brat
Dimensions
Cutout-Center Installation-4.5"x 4.5"
Usable Area-3.3"x 3.2"
Overall-6.9"x 6.4"
Dimensions
Cutout-Center Installation-4.5"x 4.5"
Usable Area-3.3"x 3.2"
Overall-6.9"x 6.4"
Air-Guard 24" Brush Kit
Air-Guard 24" Brush Kit
Dimensions
Brush Coverage - 23.0"x 9.0"
Dimensions
Brush Coverage - 23.0"x 9.0"
Air-Guard 12" Brush Kit
Air-Guard 12" Brush Kit
Dimensions
Brush Coverage - 12.0"x 9.0"
Dimensions
Brush Coverage - 12.0"x 9.0"
Air-Block 4" Square
Air-Block 4" Square
Dimensions
External-4.875"x 4.875"
Cutout-4.0"x 4.0"
Knock-Outs-(2) 0.5" (expandable to 0.75)
Dimensions
External-4.875"x 4.875"
Cutout-4.0"x 4.0"
Knock-Outs-(2) 0.5" (expandable to 0.75)
Air-Block 6" Round
Air-Block 6" Round
Dimensions
Diameter Hole - 6.0"
Knock-Outs-(2) 0.5" and (2) 0.75"
Dimensions
Diameter Hole - 6.0"
Knock-Outs-(2) 0.5" and (2) 0.75"
Air-Guard 3.5" Round
Air-Guard 3.5" Round
Dimensions
Diameter Hole - 3.5"
Knock-Outs-(1) 0.5" (expandable to 0.75")
Dimensions
Diameter Hole - 3.5"
Knock-Outs-(1) 0.5" (expandable to 0.75")
Basic Grommets

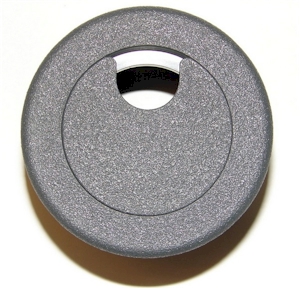

1.875" Small Grommet
1.875" Small Grommet

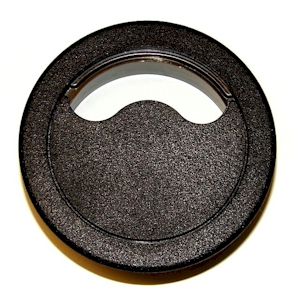

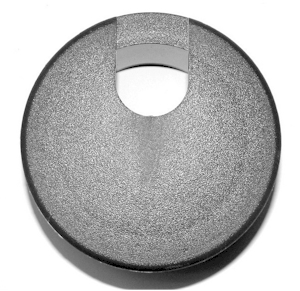

3" Grommet (removable cap)
3" Grommet - Original Style (removable cap)
3" Grommet (one-piece design)
3" Grommet (one-piece design)

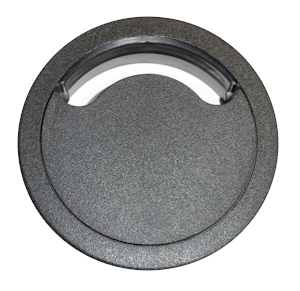

4" Grommet (one piece design)
4" Grommet (one piece design)

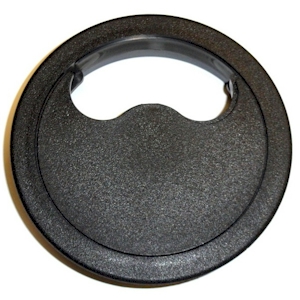

4.75" Grommet (two piece)
4.75" Grommet (two piece)

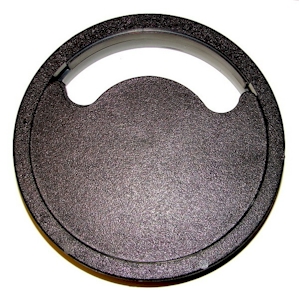

5" Grommet (two piece)
5" Grommet (two piece)

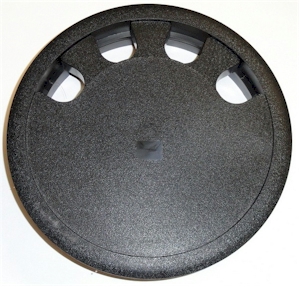

6.5" Heavy Duty Floor Grommet
6.5" Heavy Duty Floor Grommet

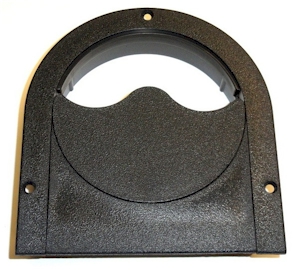

8" Super Heavy Duty Floor Grommet
8" Super Heavy Duty Floor Grommet
5" Perimeter Floor Grommet
5" Perimeter Floor Grommet
Available in black and gray.
Available in black and gray.
3" Perimeter Wedge Grommet
3" Perimeter Wedge Grommet

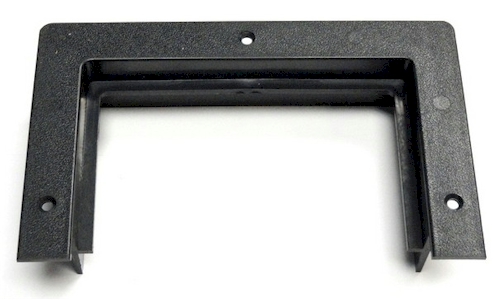

4"x6" Cable Guard
4"x6" Cable Guard
Installation Cut Size: 4-3/16" x 6-5/16".
Installation Cut Size: 4-3/16" x 6-5/16".

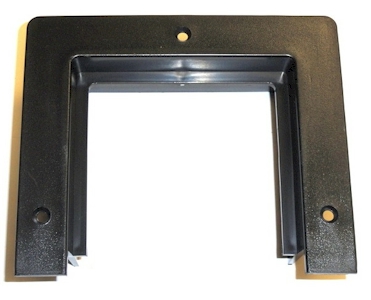

4"x4" Cable Guard
4"x4" Cable Guard
Installation Cut Size: 4-1/8" x 4-3/8".
Installation Cut Size: 4-1/8" x 4-3/8".

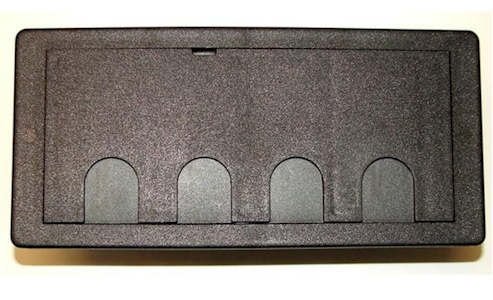

Gromport
Gromport
The cut out dimensions are 3-5/8" x 8-1/8".
Available in black and gray.
The cut out dimensions are 3-5/8" x 8-1/8".
Available in black and gray.
